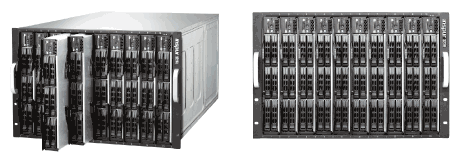

| I8000 is a new generation high-performance blade server, which supports 40 Inter Sandy Bridge Processors, with power ful computing capabilities. It has advantages of high performance, low power consumption and high price-performance. The 20 compution blades scalability within 8U space adequately meets the high-intensity deployment requirements. It will become the ideal choice for applications, such as HPC, IPDC and some commercial applications etc. |
 |
| Key features |
|---|
|
* High-density ⋅ The blade system contains 20 server blades in 8U chassis. ⋅ Maximum supports 40 Intel Sandy Bridge Processors, with powerful computing capabilities. * High Reliability ⋅ Key components (HDDs, radiating modules, and power supplies) are all designed with redundancy and hot-pulg technigues, key business will not be interrupted by single-point failure. ⋅ Tow Infiniband Modules redundant design for high-speed interconnection network. ⋅ Tow SMC design for management network. * Expansibility ⋅ Fully modular design, hot-plug support. ⋅ Support full-height blade and half-height blad plug mixed. ⋅ Modularization of function modules and easy to update blade. ⋅ Applied in accordance with the expansion of demand based on 10 PCI-E solts (half height card). |
| Chassis Specifications | |
|---|---|
| Height | 8U rack. |
| Blade | 20 half-height blades or 10 full-height blades, Support blade hot-plug and mixed. |
| IO BOX Module | 10 PCI-e 3.0 x16 Slots (x8 link). Hot-plug. |
| Gbe (Ethernet) Module | 2 Wwitch Modules 4 SFP+(10G) and 4 RJ45(1G). Hot-plug. |
| Management Module | Support KVM over LAN, Support Virtual Media redirection. Local and Remote management. Module Redundancy. Hot-plug. |
| Power supply and fan modules | 8 power supply (1350W) and full modules. Module Redundancy. Hot-plug. |
| DP Blade Module Specifications | |
|---|---|
| Blade | Half-height blades |
| Processor | 2x Intel E5-2600 processors |
| Chipset | Intel Patsburg chipset |
| Memory | 8 DIMM slots, support 1066/1333/1600 RDIMMs & UDIMMs |
| HDDs | 2 Hard Disks, support SATA/SAS/SSD |
| Net work interface | Intel 82576, support 2 Gigabit Ethernet network ports |
| Expansion | 1 Mezz card connector |
| MP Blade Module Specifications | |
|---|---|
| Blade | Full-height blades |
| Processor | 4x Intel E5-4600 processors |
| Chipset | Intel Patsburg chipset |
| Memory | 32 DIMM slots, support 1066/1333/1600 RDIMMs & UDIMMs |
| HDDs | 2 Hard Disks, support SATA/SAS/SSD |
| Net work interface | Intel 82576, support 2 Gigabit Ethernet network ports |
| Expansion | 1 Mezz card connector |
